CAF Jointings

our Products

CAF Jointings

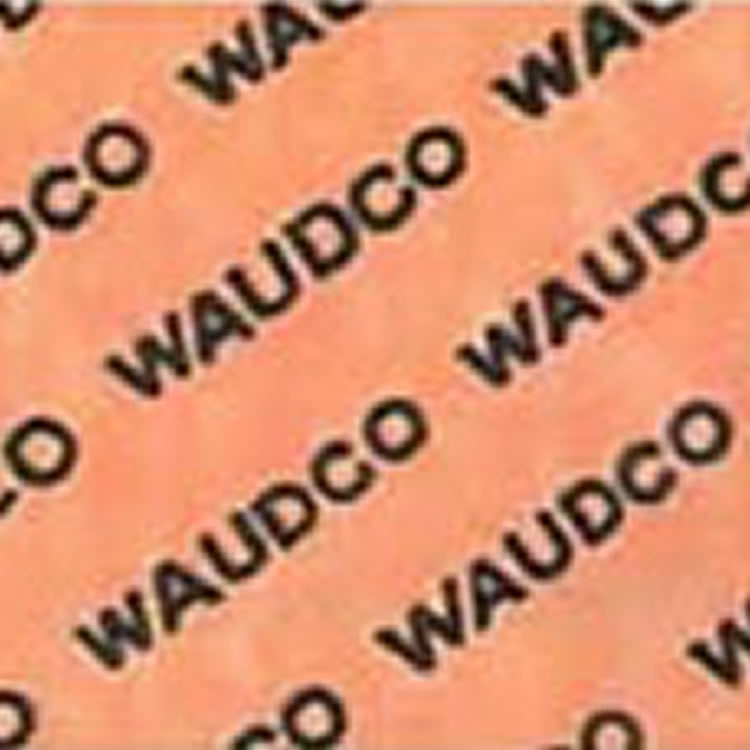

Waudco

A good quality general purpose jointing material developed for low and medium stress conditions, Suitable for complete sealing of steam, water, air and various mild alkaline chemicals. Extensive application in plant maintenance, for wide range of services in all industries.

Temperature Recommended Max. 380° C
Pressure Recommended Max. 35 Kg/cm2
Specification Compliance IS 2712 - 1979 grade W/3 , IS 2712 - 1971 grade 'C'
Color Red generally; On demand graphited.
Printed Black all over one side generally.
Available Sheets 1590 mm x 2000 mm + 5% & 3180 mm x 2000 mm + 5%
Thickness 0.4 mm, 0.75 mm, 1.5 mm, 3.0 mm, (Other thicknesses on request, Subject to minimum manufacturing quantity).

WAUDCO is available with wire gauge insertion in thickness of 0.75 mm, 1.5 mm, 3.0 mm, and is suitable for :

Temperature Recommended Max 415° C
Pressure Recommended Max 45 Kg/cm2

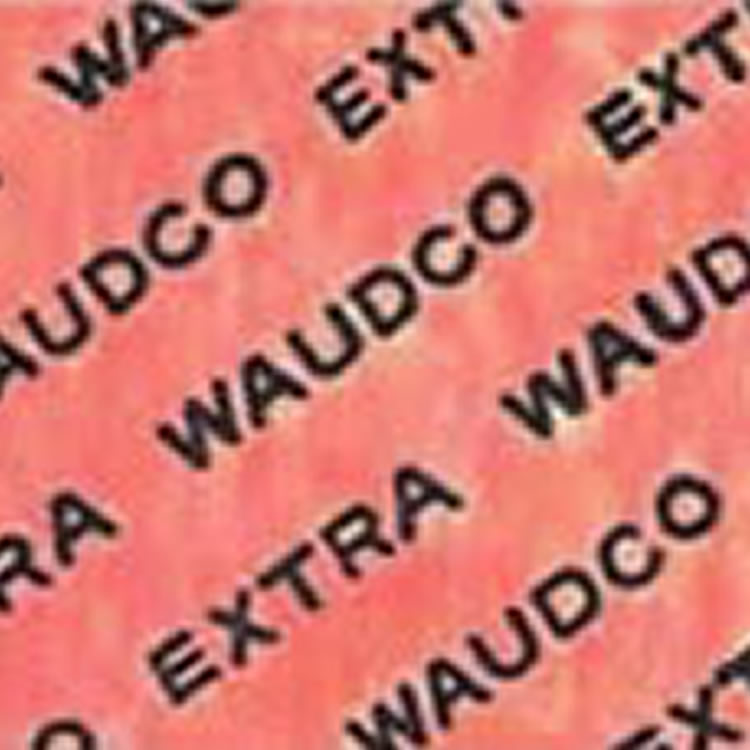

Waudco Extra

A good jointing material developed with selected asbestos fibre for moderate service providing excellent sealing strength and heat resistance for medium stresses, and is suitable to seal off water, stream, air, saline solutions, alkalies, ammonia and mildly aggressive media.

Temperature Recommended Max. 440° C
Pressure Recommended Max. 80 Kg/cm2
Specification Compliance IS 2712- 1979 grade W/2, IS 2712- 1971 grade 'C'
Color Red generally; On demand graphited.
Printed Black all over one side generally.
Available Sheets 1590 mm x 2000 mm + 5% & 3180 mm x 2000 mm + 5%
Thickness 0.4 mm, 0.75 mm, 1.5 mm, 3.0 mm, (Other thicknesses on request, Subject to minimum manufacturing quantity.)

WAUDCO EXTRA is available with wire gauge insertion in thickness of 0.75 mm, 1.5 mm, 3.0 mm, and is suitable for :

Temperature Recommended Max 460° C
Pressure Recommended Max 90 Kg/cm2

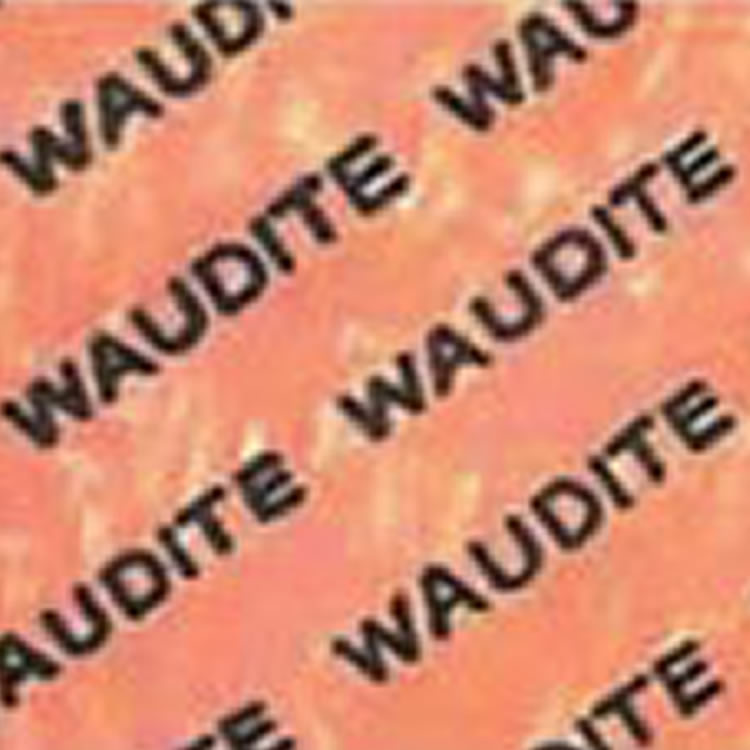

Waudite

A Good quality moderate service compressed asbestos jointing recommended for use against dry and wet steam, water, gases, alkalies, oil at normal temperatures, chemicals, and fuels, etc. Extensively used for application in maintenance, services in all Industries.

Temperature Recommended Max. 440° C
Pressure Recommended Max. 80 Kg/cm2
Specification Compliance IS 2712- 1979 grade W/2, IS 2712- 1971 grade 'C'
Color Red generally; On demand graphited.
Printed Black all over one side generally.
Available Sheets 1590 mm x 2000 mm + 5% & 3180 mm x 2000 mm + 5%
Thickness 0.4 mm, 0.75 mm, 1.5 mm, 3.0 mm, (Other thicknesses on request, Subject to minimum manufacturing quantity.)

WAUDCO EXTRA METALLIC is available with wire gauge insertion in thickness of 0.75 mm, 1.5 mm, 3.0 mm, and is suitable for :

Temperature Recommended Max 460° C
Pressure Recommended Max 90 Kg/cm2

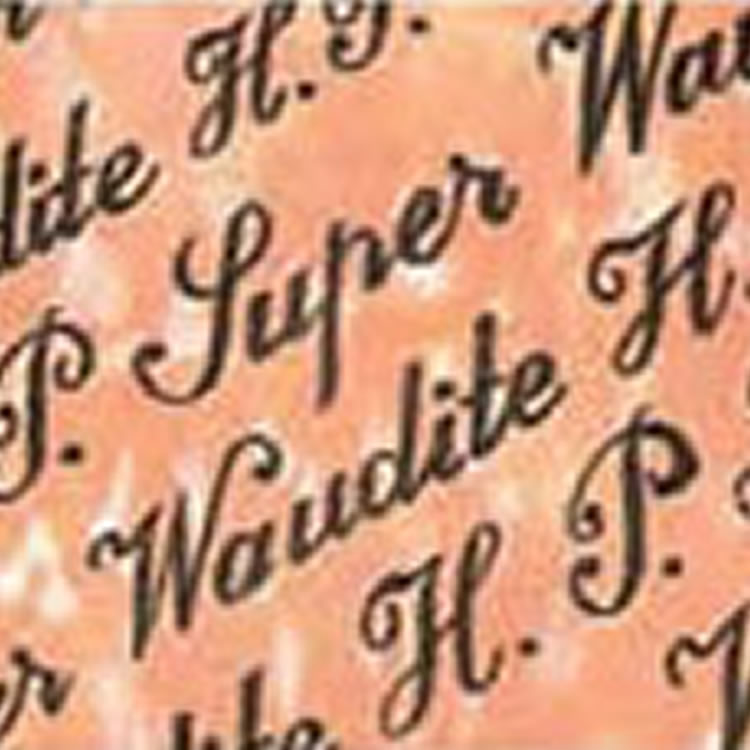

SUPER WAUDITE H.P.

A super quality jointing compose of carefully selected Chrysotile asbestos fibre with a specially compounded heat-resisting synthetic rubber binder. Used mainly on steam services and conditions where reliability at high temperature and pressure is demanded. Also good resistance to a wide range of oils, Alkalies, Chemicals, Petroleum distillates and solvents. This grade is widely used in marine engines, electricity generating sets, etc.

Temperature Recommended Max. 550° C
Pressure Recommended Max. 160 Kg/cm2
Specification Compliance IS 2712- 1979 grade W/1, IS 2712- 1971 grade A/S, B.S. 2815- 1973 grade A
Color Red generally; On demand graphited.
Printed Black all over one side generally.
Available Sheets 1590 mm x 2000 mm + 5% & 3190 mm x 2000 mm + 5%
Thickness 0.25 mm, 0.4 mm, 0.75 mm, 1.5 mm, 3.0 mm, (Other thicknesses on request, subject to minimum manufacturing quantity.)

Super Waudite Metallic is available with wire gauge insertion in thickness of 0.75 mm, 1.5 mm, 3.0 mm & suitable for :

Temperature Recommended Max 600° C
Pressure Recommended Max 180 Kg/cm2

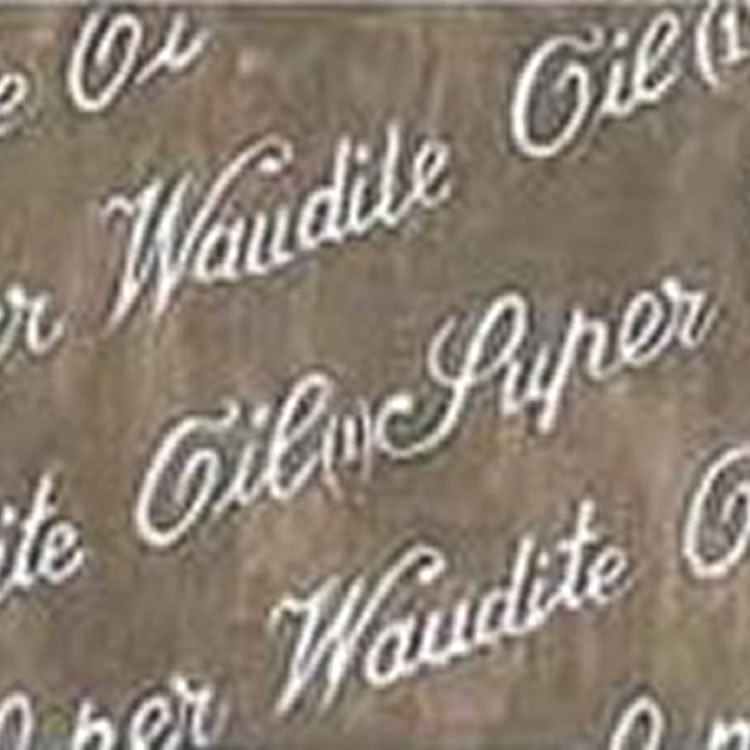

SUPER WAUDITE OIL (0/1)

A high grade asbestos fibre bonded with synthetic binder having exceptional resistance to oils and solvents. Widely used in oil and petrochemical industries. In addition, it is particularly suitable for use with refrigerants and all conditions calling for high resistance to hydrocarbons. Also used in oil cracking plants, coal distillation units and high pressure stills, and is equally satisfactory against water, steam, and general chemicals.

Temperature Recommended Max. 550° C
Pressure Recommended Max. 160 Kg/cm2
Specification Compliance IS 2712- 1979 grade 0/1, IS 2712- 1971 grade A/0, B.S. 1832 - 1972
Color Black
Printed White on one side generally.
Available Sheets 1590 mm x 2000 mm + 5% & 3180 mm x 2000 mm + 5%
Thickness 0.25 mm, 0.4 mm, 0.75 mm, 1.5 mm, 3.0 mm, (Other thicknesses on request, Subject to minimum manufacturing quantity.)

SUPER WAUDITE OIL (0/1) METALLIC is available with wire gauge insertion in thickness of 0.75 mm, 1.5 mm, 3.0 mm, and is suitable for :

Temperature Recommended Max 600° C
Pressure Recommended Max 180 Kg/cm2

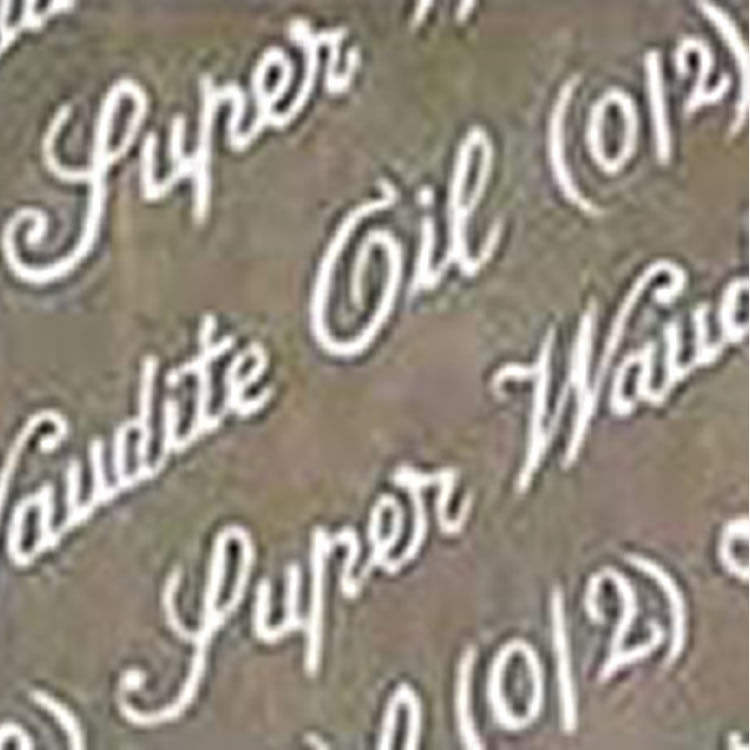

SUPER WAUDITE OIL (0/2)

A good quality moderate service compressed asbestos jointing bonded with special rubber compound, Recommended for use with most transmission and hydraulic fluids, and low temperature oils. Also used against dry and wet steam, water, gasses, alkalies, oil at normal temperature, chemicals and fuels.

Temperature Recommended Max. 450° C
Pressure Recommended Max. 140 Kg/cm2
Specification Compliance IS 2712- 1979 grade 0/2, W/2, IS 2712- 1971 grade B/S
Color Black / Grey
Printed White on one side generally.
Available Sheets 1590 mm x 2000 mm + 5% & 3180 mm x 2000 mm + 5%
Thickness 0.25 mm, 0.4 mm, 0.75 mm, 1.5 mm, 3.0 mm, (Other thicknesses on request, Subject to minimum manufacturing quantity.)

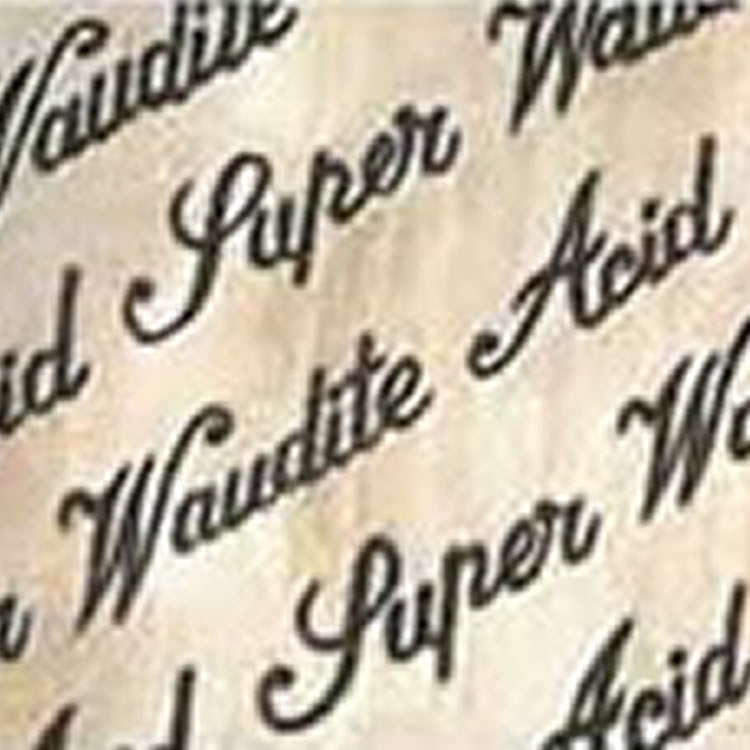

SUPER WAUDITE ACID

A super quality jointing compose of carefully selected Chrysotile asbestos fibre with a specially compounded heat-resisting synthetic rubber binder. Used mainly on steam services and conditions where reliability at high temperature and pressure is demanded. Also good resistance to a wide range of oils, Alkalies, Chemicals, Petroleum distillates and solvents. This grade is widely used in marine engines, electricity generating sets, etc.

Temperature Recommended Max. 550° C
Pressure Recommended Max. 160 Kg/cm2
Specification Compliance IS 2712- 1979 grade W/1, IS 2712- 1971 grade A/S, B.S. 2815- 1973 grade A
Color Red generally; On demand graphited.
Printed Black all over one side generally.
Available Sheets 1590 mm x 2000 mm + 5% & 3190 mm x 2000 mm + 5%
Thickness 0.25 mm, 0.4 mm, 0.75 mm, 1.5 mm, 3.0 mm, (Other thicknesses on request, subject to minimum manufacturing quantity.)

Super Waudite Metallic is available with wire gauge insertion in thickness of 0.75 mm, 1.5 mm, 3.0 mm & suitable for :

Temperature Recommended Max 600° C
Pressure Recommended Max 180 Kg/cm2
