Ceramic Paper / Board

Ceramic fibre paper is a free thickness paper made from high purity ceramic fibres with a small amount of organic binder.

Advanced production techniques ensure a highly uniform structure throughout which is characterised by low thermal conductivity, good handling strength and good dielectric strength.

Easily cut with standard equipment, ceramic fibre paper can be wrapped or rolled around most shapes to provide highly effective thermal insulation in a variety of applications.

Ceramic fibre paper exhibits excellent chemical stability, resisting attack from most corrosive agents.

Exceptions are hydrofluoric and phosphoric acids and concentrated alkalies. If wetted by water or steam, thermal and physical properties are completely restored upon drying

General Characteristics

Ceramic fibre paper has these outstanding characteristics:-

High temperature stability
Low heat storage
Lightweight
Resiliency
Thermal shock
Good dielectric strength
Good chemical stability
Flexibility in use

Typical Physical Properties

Colour White
Classification Temp* 1250°C
Melting Point 1800°C
Fibre Diameter 2.0 - 3.0 microns (mean)

Thermal Conductivity Data

(based on CEN draft method ASTM C-201) (W/m°K)
600°C Mean Temp. 0.08
800°C Mean Temp. 0.11
1000°C Mean Temp. 0.16

Typical Applications

Industrial and domestic appliance gasketing
Ingot mould liners
Hot top liners
Parting medium in brazing, welding and soldering
Liquid metal back-up insulation
Tap out plug covers
Expansion joints

Availability of Size

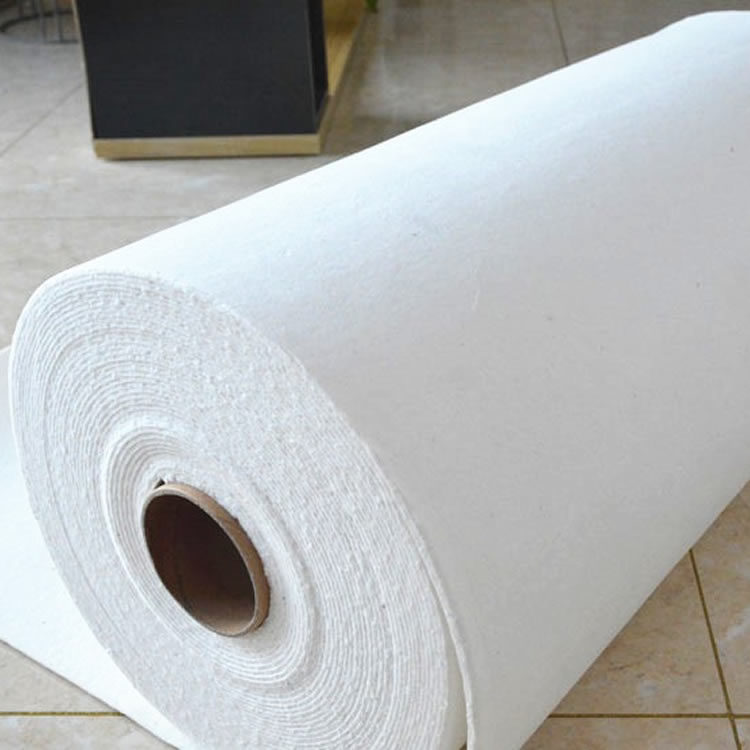

PAPER : 1 M WIDE X 0.2 MM & 0.4 MM THICK IN CONTINIOUS ROLLS
SHEET : 1 M X 1 M X 1 MM TO 12.5 MM THICK
