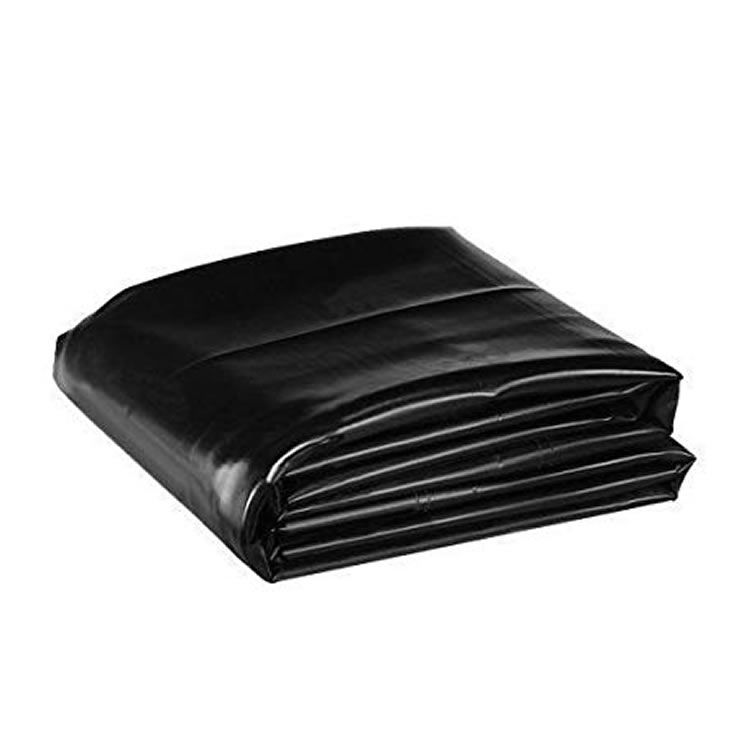

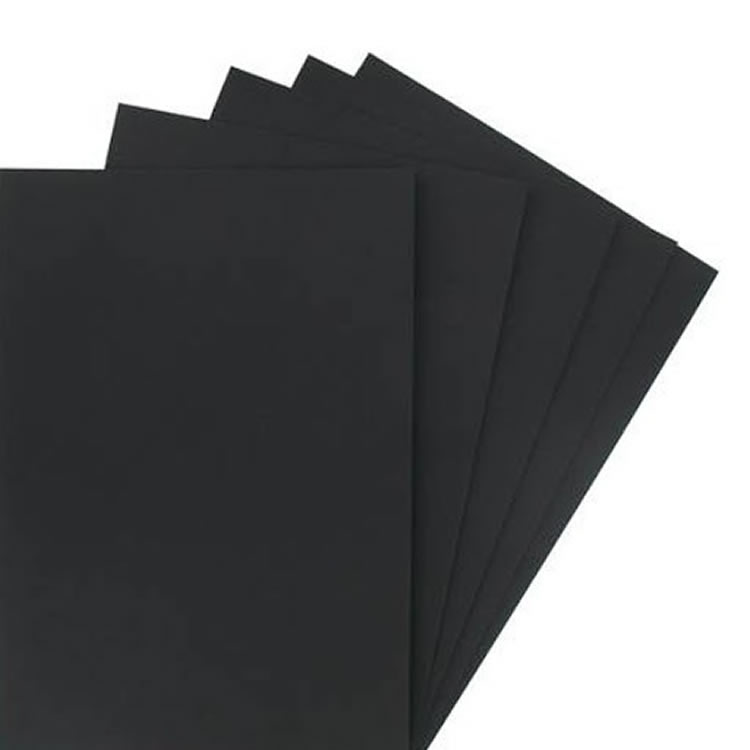

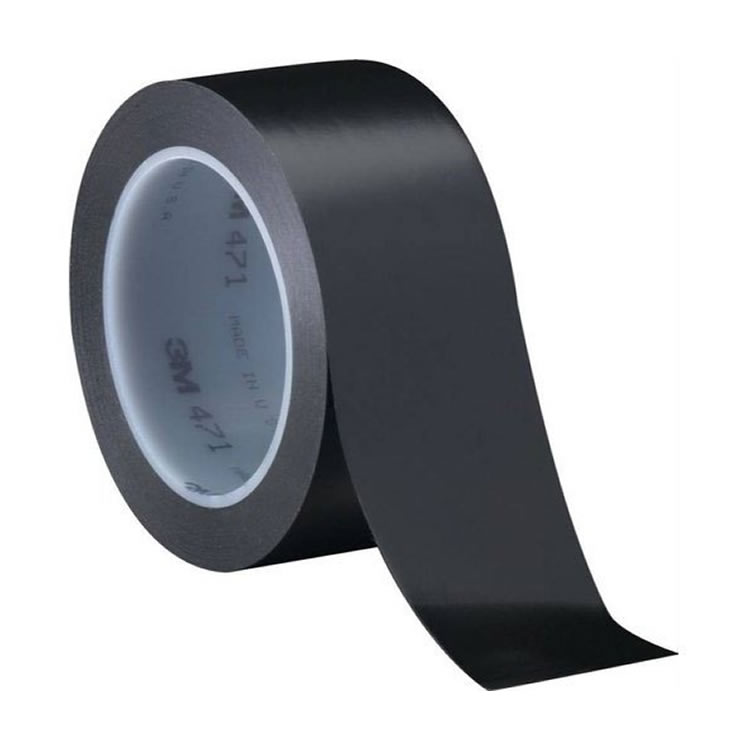

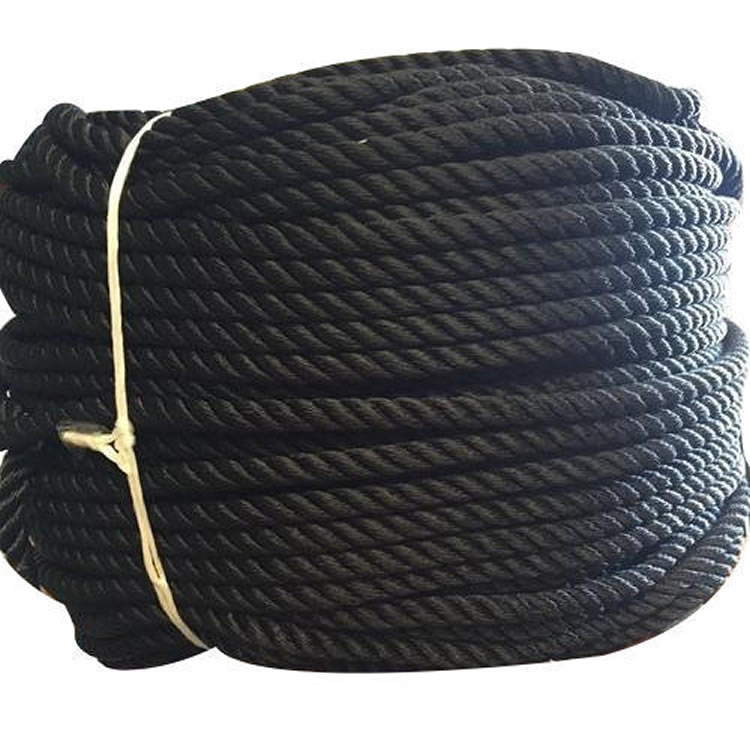

Graphite Paper / Sheet / Rope / Cloth / Tape Specification

Charateristics and Specification

Heat and fire resistant
Chemical resistant, compatible with most chemicals
Compressible, conformable, low creep relaxation
Thermal conductive, electrical conductive
Reinforced structure to handle high pressure applications

Typical Applications

Heat and chemical resistant gasket, seal, liner; thermal conductive seal; heat exchanger gasket Oxidizing Atmosphere, such as air: -400° F to 950° F (-240°C to 510°C)
Mild Oxidizing Atmosphere of most gasket applications: -400° F to 1500° F(-240°C to 850° C)
Non-Oxidizing Atmosphere: -400° F to 5400° F (-240°C to 3000° C)

Thermal Conductivity

Parallel to Sheet Surface : 960 BTU-in/ft2.h.F (140 W/m.K)
Through Thickness : 36 BTU.in/ ft2.h.F (5W/m.K)

Typical Applications

Heat and chemical resistant gasket, seal, liner; thermal conductive seal; heat exchanger gasket
