Mill Board

'SUPERBOARD' Asbestos Millboard is manufactured from selected clean, long Asbestos Fibres of uniform quality mixed with suitable incombustible binding materials. 'SUPERBOARD' are very different for heat and fire resistance with superior strength at service temperature upto 500 C(932 F) and even higher temperature when properly supported . 'SUPERBOARD' can also withstand vibratory and impact loads. 'SUPERBOARD' contains excellent insulating properties for heat and electric insulation. Besides, 'SUPERBOARD' have acid, sound and vermin-proof properties too. It is strong and flexible. It can be cut, drilled and screwed to supporting beams easily. Also moulded or cemented to any shape. The SOFT, MEDIUM and HARD GRADES of 'SUPERBOARD' are made to cover the wide applications. The medium grade is standard and is supplied unless otherwise if requested. The hard grade is stiff and brittle, is used where rigidity is needed.

SIZES

'SUPERBOARD' milliboard normally normally supplied in standard 1m X 1m sheet in thickness 1.5 mm, 3 mm, 4 mm, 5 mm, 6mm, 10mm, & 12mm.

PACKINGS

'SUPERBOARD' milliboard are packed into wooden crates of approx. 100/105 kgs. No. of sheets in one crate varies according to board thickness as follows :

Board thickness in MM No. of sheets per crate
1.5 60
3.0 30
4.0 25
5.0 20
6.0 15
10.0 9
12.0 7

APPLICATIONS

BOILERS AND FURNACES

Bedding layers on floor tiles in boiler house.
Refractory underlining
Damper control heat insulators
Boiler door linings
Gaskets for burners and ducting.

CATERING EQUIPMENT

Heating appliances such as Domestic, Cookers, Grills etc.
Flue gas and burner seals Combustion chamber linings Heat shield panels.

STEEL, FERROUS / NON-FERROUS PLANTS

Steel and Aluminum making processes.
Centrifugal casting seals.
Induction furnace coil protection
Splash guards
Launder linings/gaskets and siphon/crucible gaskets in aluminum smelters
Roller conveyors for stainless steel strips
Back up insulation for arc furnaces
Bearing seals.

GLASS MANUFACTURE

Base mat in glassware manufacturing and annealing processes
Glass molding
Roller conveyors for float glass
Heat shields/gaskets
Support insulation pads.

GENERAL APPLICATIONS

Lining for ceilings, walls floors etc.
Internal lining of oven walls
Heater and furnace linings
Base mat in glassware manufacturing and annealing processes
Stoves, Heater and Kilns
In Textiles, Paper, Sugar, & Chemical industries
Laboratory equipment
Cement kiln back-up
Filler for metal clad gaskets
Electrical Switch boxes
Iron board rests

Hatching incubators
Fireproof doors
Fire protection
Air ducting gaskets and air supply thermal insulation
Air conditioning ducts

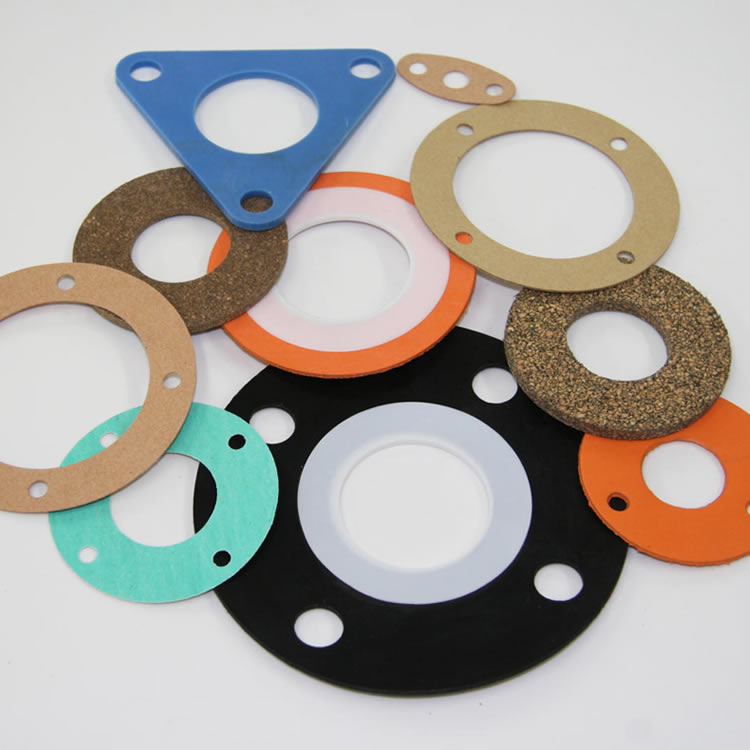

SPECIAL QUALITY FOR GASKETS

We also manufacture special quality ASBESTOS MILLBOARD suitable for general use Gasketing / heat shield material.

Size

1.5 mm thickness

APPLICATIONS

Automobile Engine Gaskets
Cylinder head Gaskets
Air Filters
Gaskets For joining air
Auto clutch facings

SPECIFICATION COMPILANCE

DGS and D G /MISC/81C
GOST 2850/1958
DG Ships : 6853
BHPV PS-214
OFM No 62-020
BHEL TP-21596
BHEL Bhopal ps : 21502-B/AA-21525
Ministry of Defence Spcn.No: jss-5640-4
Ministry of Defence Spcn No: IND/TC/2223
IS : 7777 Specn.
